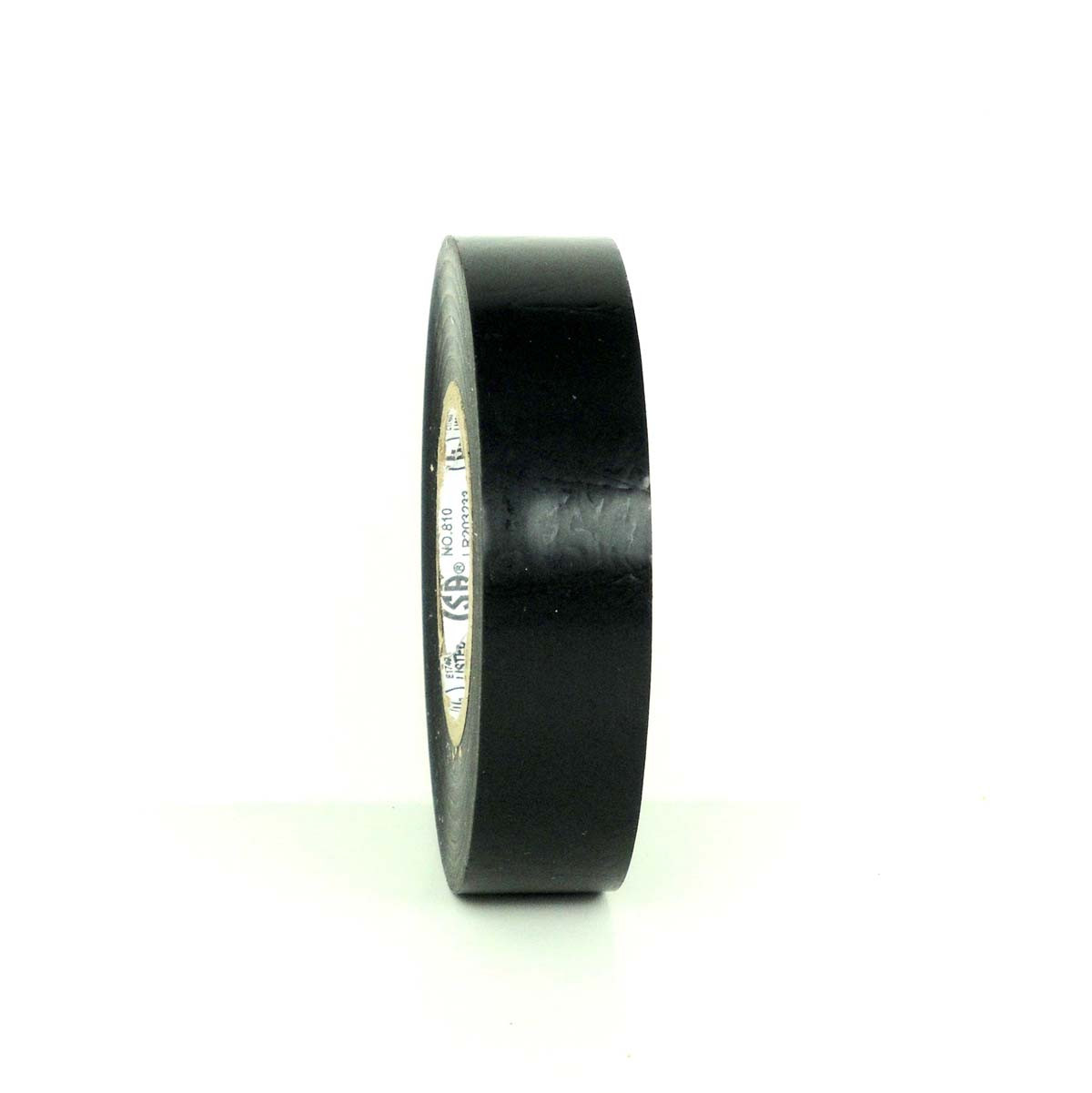

Black Electrical Tape 3/4 in

Electrical Tape By Case or By Roll

Color: Black

ALL WEATHER COLORED ELECTRICAL TAPE Flame Retardant & Cold Resistant

Width: 3/4 inch

Lengths: 30 feet, 60 feet, 66 feet, 108 feet Rolls.

DESCRIPTION:

Black Electrical Tape (62018) is a line of colored PVC Electrical Insulation Tapes with Rubber based adhesive, which is flame retardant and cold weather resistant used general for insulating, protection, and color-coding of electrical wires; for wire harnessing in automotive industry. Black Electrical Tape Rolls are individually cello-wrapped and labeled. 1-1/2" (38.1MM) UL/CSA Labeled Core.

SPECIFICATIONS:

• Backing: Plasticized PVC
• Adhesive: Rubber based
• Total Thickness: 7 mil (0.18mm)
• Voltage Breakdown: 8kv
• Peel Adhesion: 16.4 oz/in
• Tensile Strength: 14.8 lbs/inch
• Elongation at Break: 200%
• Temperature Resistance: 14F to +176F
• Core listed: UL/CSA/CE

NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
