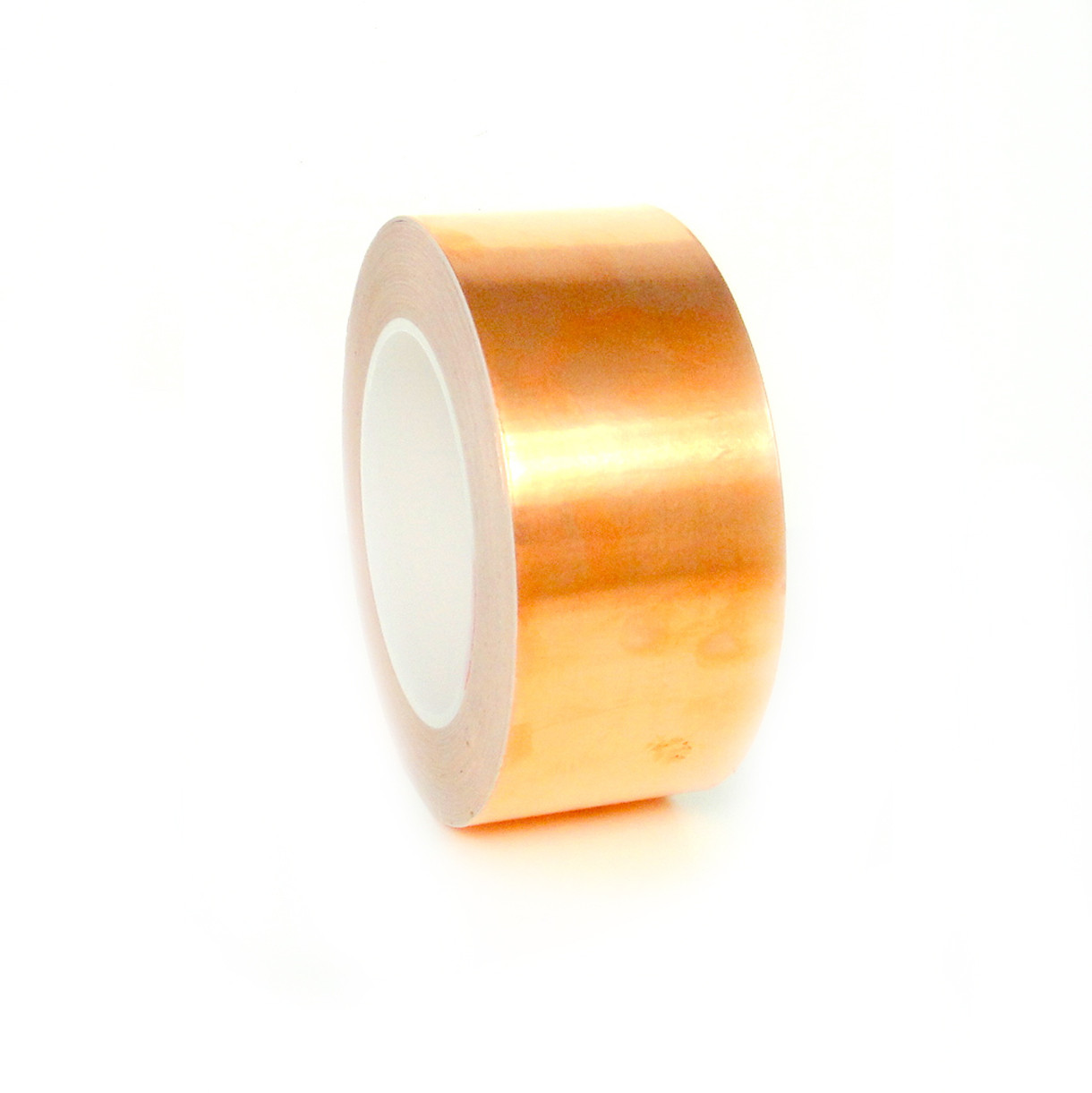

1 oz Copper Foil (1.4 mil) coated with an acrylic adhesive. Tape is wound up on a white 66# paper release liner.
Features & Benefits:
1 oz. Rolled Copper Foil provides excellent solderability and conformity. Product is coated with an aggressive Acrylic Adhesive system which creates a superior bond. Annealed and non-tarnishing.
Cable wrapping to provide EMI/RFI shielding of small electromagnetic components (transformer and reactor coils, instrument and control motors); repair and modification of printed wiring boards; flat conductor assemblies, prototype wiring board design and layout; supplementary shielding of joints, seams; for shielding cable slices and cable repair.
|Backing||1 oz Rolled Copper Foil (1.4 mil)|
|Tape Thickness||3.5 mil without liner|
|Adhesion to Steel||40 oz/inch|
|Tensile Strength||25 lb./inch|
|Operating Temperature||Class F (155°C)|
|Flammability||File #E130121, UL 510, Section 4|
Also known as: Also known as: non conductive metal tape, non conductove metal tape, CFL5A, CFL-5A, non conductive tape, non conductove tape, copper foil tape, copper foil tapes, copper tape, copper tapes, non conductive copper foil tape.
Alternative to: 3M #1194; Permacel # P-389; Chomerics #CCH301; Venture #1650; Saint-Gobain #C661; Lamart #881; Bondec #CF23CD.
Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
