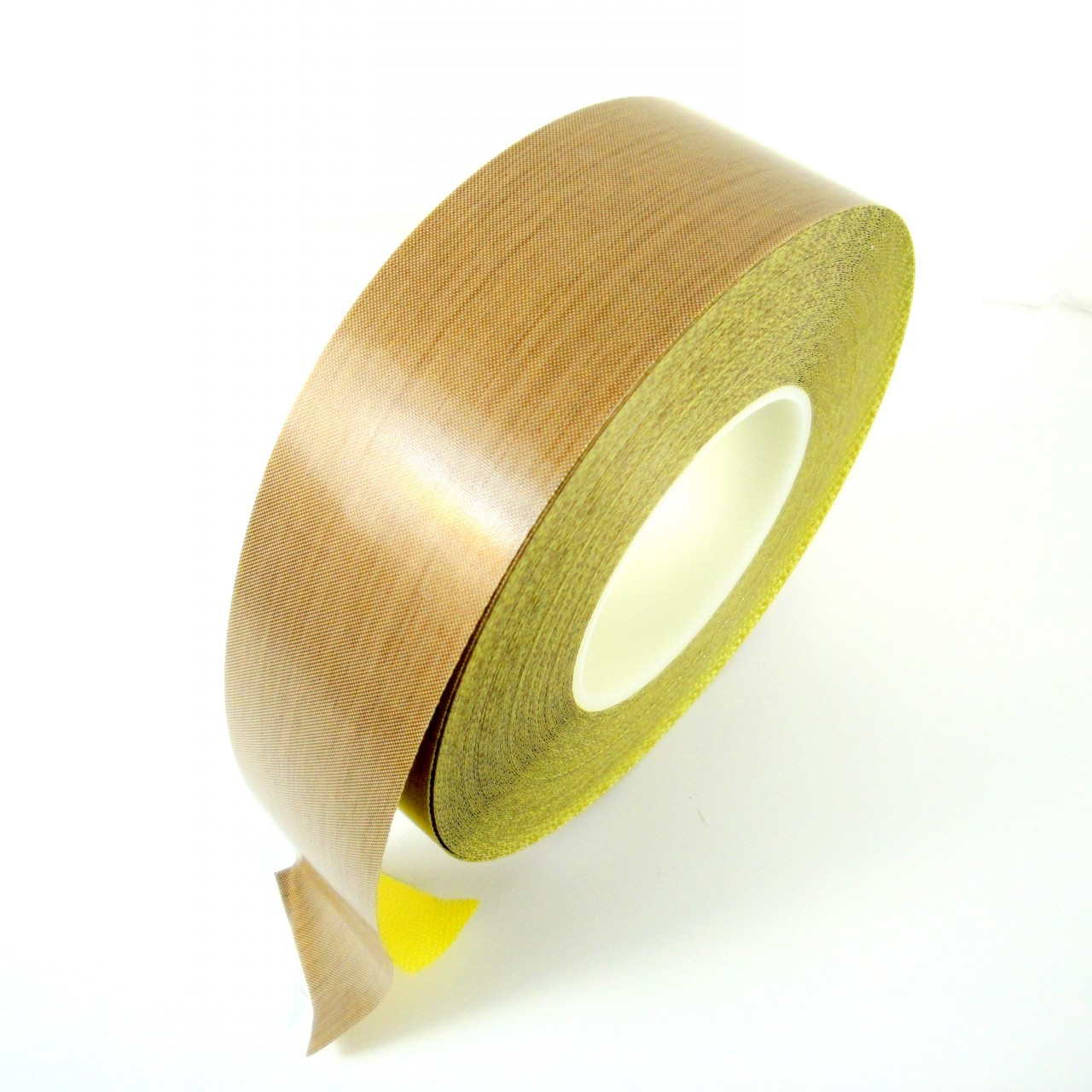

Teflon Coated Glass Fabric Tape 5 Mil

Teflon® Coated Glass Fabric Tapes

Description:

Teflon® impregnated fiberglass cloth, consisting of warp and fill yarns, and coated with a high temperature silicone adhesive. Excellent electrical, mechanical and chemical properties. Used as a primary insulation in a variety of electrical equipment and heat sealing bars, chute liners, gaskets, bearing surfaces, tabletop covers, guide rails and roll covers. Low friction surface; abrasion resistant. Product comes standard with liner. Self-wound is optional at no additional cost. Teflon® coated glass fabrics (without adhesive) are also available. Roll size of “NA”: 37-1/2” wide x 36 yd or 18 yd lengths. Call for pricing. 1/2” AND 3/4” WIDE ROLLS MUST BE SELF WOUND. Operating temperature range: -100°F to +500°F (-73°C to +260°C). 3” plastic core.

Physical Properties:

Alternative to 3M #5452; DeWal #134-5; St. Gobain #SG25-05; Greenbelt #100-5S; W.F. Lake #L40S-5; Taconic #6085-05; Chemfab #350-5S; Lanmar #635-5; AFC#25005S

Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.

If you need assistance when ordering: Call Us at (877) 284-4781.
