Double Coated Polyethylene Foam Tape
Zoom the image with the mouse

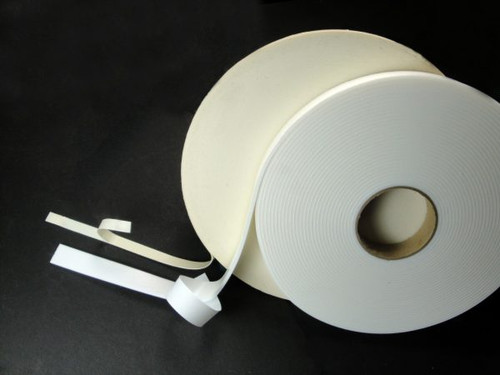

Double Coated Polyethylene Foam Tape (15XXX)

UPC:
635414721571
SKU:
15030-0025-048-72-WH
Weight:
1.00 LBS
Item Price:
Select Your Options
Item Length:
Select Your Options
Total Items:
Select Your Options
Shipping:
Free U.S. Shipping Available
Total:
$210.00
Select All Required Options
Total:
$210.00
Select All Required Options

Closed cell, cross-linked polyethylene foam tapes coated on both sides with a high performance adhesive. Wound on a 3” neutral paper core with a 50# white paper release liner.  Tapes are permanent and designed to have exceptional durability in demanding environments.  Suitable for applications where moisture resistance is required. Can be easily die-cut. Excellent conformability and compressibility.

FEATURES & BENEFITS:

  • Used for mounting and joining nameplates, signs, small die cast parts, mirrors, maps, etc.
  • Used for sound and vibration dampening in business machines, industrial equipment, copy machines, electronic component packaging and glass panel mounts, seals, gaskets, etc.

ACRYLIC ADHESIVE

RUBBER ADHESIVE

Recommended for outdoor applications due to its higher temperature, aging, UV, weather, chemical, and plasticizer resistance. High bond strength on most materials.

Excellent quick-stick sealing with high shear and peel properties for efficient operation and secure bonding, even to low surface energy materials or other difficult to bond surfaces. Low density 1/8” foam provides excellent conformance to textured and rough surfaces.



PHYSICAL PROPERTIES

15030

15031

15061

15062

15124

15125

Foam Type

Cross-linked Polyethylene

Thickness, Density

1/32” (31mil), 5 lbs

1/16” (62mil), 4 lbs

1/8” (124mil), 2 lbs

Adhesive

Acrylic

Rubber

Acrylic

Rubber

Acrylic

Rubber

Adhesive Thickness

2.0mil per side

2.2mil per side

2.0mil per side

2.2mil per side

2.0mil per side

Peel Adhesion to SST  (1 min)

> 69 oz/in

> 73 oz/in

> 55 oz/in

> 59 oz/in

> 27 oz/in

> 30 oz/in

Peel Adhesion to SST (24 hrs)

 + 82 oz/in*

 + 91 oz/in*

 + 73 oz/in*

 + 82 oz/in*

 + 46 oz/in*

 + 50 oz/in*

Available Color(s)

Black or White

White

Shear Adhesion

> 168 hours @ RT (1 kg/1 inch2)

Release Liner

* Note:  Foam tore prior to adhesion failure.



2.8 mil, 50# White Siliconized Paper



















APPLICATION GUIDE

ACRYLIC ADHESIVE

RUBBER ADHESIVE

Adhesion to Metals

Excellent

Excellent

Adhesion to High Surface Energy

Very good

Excellent

Adhesion to Low Surface Energy

Good

Very good

UV Resistance

Excellent

Very good

Chemical Resistance

Very good

Good

Moisture Resistance

Excellent

Excellent

Plasticizer Resistance

Excellent

Good

Oil Resistance

Excellent

Very good

Acid Resistance (mild)

Very good

Good

Service Temperature

-22°F to 212°F

-22°F to 176°F

Temperature Resistance





Short term (minutes, hours)

266°F

194°F

Long term (days, weeks)

212°F

176°F



STORAGE:

Store in a clean, dry environment out of direct sunlight.  Recommended storage conditions are 50% RH and 65ºF to 85ºF. Ensure that all surfaces are clean, dry, and free from excessive dust prior to installation.

Alternative to Venture #632 & #732; Scapa #SA432V & #SA5432V; 3M #4482 & #4462 & #4492; Int¶__l Tape #332, #1328, #132 & #432; IPG #8132; Press-on P-3200R/A.

Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
