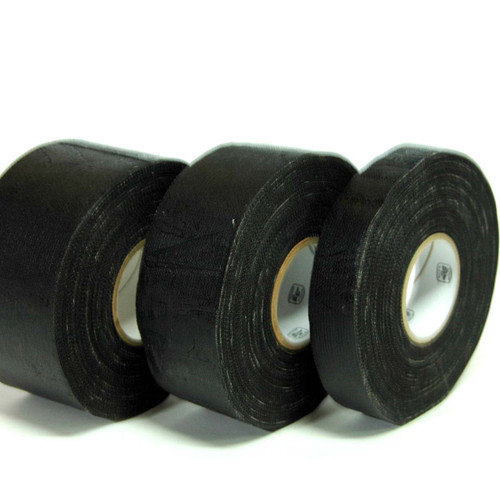

Friction Tape (63040)

A 13.3 mil friction tape with a black cotton cloth backing coated with a non-corrosive rubber-resin adhesive. The tape is wound on a 1.5” (38.1mm) neutral core. Rolls are individually cello-wrapped.

FEATURES/BENEFITS:

  • Hand-tearable, flexible and conformable.
  • Holds tightly on rough and irregular surfaces.
  • Adhesive system will not dry out.
  • Excellent resistance to humidity, abrasions and galvanic corrosion.

APPLICATIONS:

  • Used for general electrical maintenance and industrial repairs jobs.
  • Insulate and protect industrial harnesses and electrical wires from physical damage caused by friction.
  • To protect hanging electric crane wires, pneumatic hoses, protection on lift trucks.
  • For over wrapping low voltage splices and insulating cables.

PHYSICAL PROPERTIES:

Backing

Black Cotton Cloth

Adhesive

Rubber Resin

Total Thickness (excludes liner)

13.3 mils (0.33 mm)

Tensile Strength

46.3 lbs/inch

Elongation

4%

Dielectric Strength

1 kV

Insulation Class

176°F

NOTE: Unless otherwise noted, the physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for their use; and user assumes all risks and liabilities in connection therewith. All test procedures are in accordance with standard (ASTM, PSTC, AFERA, JIS) test methods.
