LDPE Mosaic Tile Tape
Zoom the image with the mouse

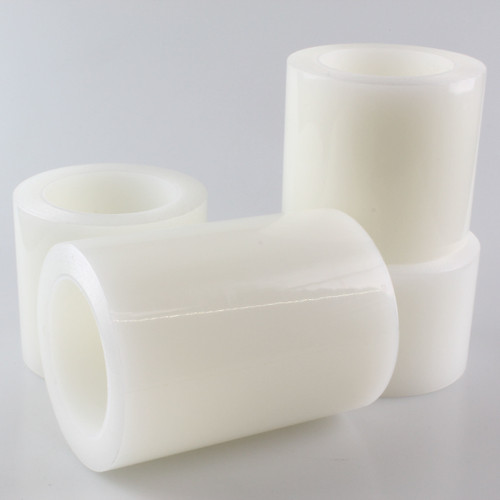

LDPE Mosaic Tile Tape (63502M)

Low Density Polyethylene Film (LDPE) for Mosaic Tiles

  • Front mounted clear adhesive film; strong enough to hold tiles during transit and installation.
  • Designed to release after installation without leaving adhesive residue on your tiles.
  • Can be used with stone, glass and ceramic.
  • Simply peel it off the roll and apply.
  • No release paper self-leveling: eliminates the different levels in the surface created by stone and tile pieces with different thicknesses.
  • Crystal clear so you can see your tile design during installation.


Low density polyethylene film tape. Acrylic adhesive. Highly conformable. Good abrasion and chemical resistance. Outstanding moisture barrier properties. Acrylic based pressure sensitive adhesive system provides high adhesion and cohesion which yields a permanent bond with virtually no edge bleed out. UV resistant. Excellent long term aging stability without yellowing. Will not crack or crease at low temperatures. 3” plastic core.


Water filter purification pipe wrap, protective sealing, splicing, seaming and patching where a highly conformable and optically clear material is required.

Physical Properties:

Total Thickness   5.5 mil (0.14mm)
Tensile strength   11 lbs/in. width
Adhesive   Acylic
Elongation (at break)   400%
Adhesion to steel   56 oz/in.
Operating temperature rangen   50°F to +120°F

Alternative to 3M #480; Patco 502A, 503A .

Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.


Show More Show Less
3.00 LBS
Item Price:
Select Your Options
Item Length:
Select Your Options
Total Items:
Select Your Options
Tape Width: *
Pack Size: *
$21.00 Select All Required Options
Free U.S. Shipping Available
Total: $21.00 Select All Required Options

Physical Properties

Shipping and Returns

All non-specialty unused and unopened items received within 30 days may be returned for a full refund or exchange of the product. Tape Jungle will also pay for the return shipping if returned due to company error or product defect.

A 15% restocking fee will apply to converted items, sizes that are listed on the website but cut specifically to order. Custom orders, as defined as application-specific sizes that are NOT listed on the website are non-returnable without prior approval except in the event of company error.

If unsure of the policy, confirm prior to placing your order or request a sample.
