Double Coated Polyester 5.5 Mil - White PVC | Double Stick Tape | Tape Jungle
Zoom the image with the mouse
Double Coated Polyester 5.5 Mil - White PVC | Double Stick Tape | Tape Jungle
Double Coated Solvent Based Acrylic Adhesive | Strong to bond to Foams, PE and PP films | TapeJungle.com

Double Coated Polyester 5.5 Mil - White PVC (54414W)

UPC:
653020410054
SKU:
54414W
Weight:
30.00 LBS

Order Details

Item Price:
Select Your Options
Item Length:
Select Your Options
Total Items:
Select Your Options
Shipping:
Free U.S. Shipping Available
Total:
$3.47
Select All Required Options
Photos Options View Cart Delivery Info
Total:
$3.47
Select All Required Options

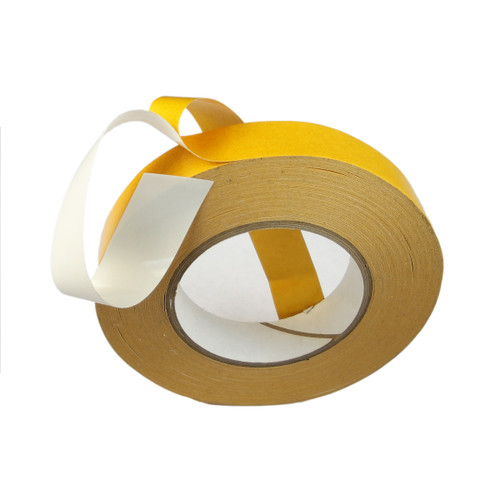

Double Coated PVC (White) is a white PVC film is coated on both sides with an aggressive solvent based modified acrylic adhesive. This tape is provided on a gold, siliconized paper release liner and wound on a 3” neutral core.

FEATURES/BENEFITS:

  • Excellent temperature, UV, aging, and water vapor resistance.
  • Bonds well to most materials, including difficult surfaces like foams, PE & PP films.

APPLICATIONS:

  • Used for secure attachment of extruded plastic profiles in furniture and general industries.
  • Used extensively for mounting of signs and large format graphics.
  • Recommended for bonding trims in automotive and other industries.

PHYSICAL PROPERTIES:

Backing

1.5mil White PVC Film

Adhesive

Modified Acrylic Adhesive

Total Thickness (excludes liner)

5.5 mils (0.140 mm)

Liner

90 g/m2 Gold Siliconized Release Paper

Peel Adhesion





- 1 minute dwell

80 oz/inch



- 20 minute dwell

88 oz/inch



- 24 hour dwell

102 oz/inch

Shear Resistance





- Temperature at 73˚F

> 400 hours



- Temperature at 158˚F

> 6 hours

Application Temperature

> 59˚F

Temperature Resistance

-40˚F to 158°F

NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications.  Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith.  All test procedures used are in accordance with ASTM and PSTC methods.
