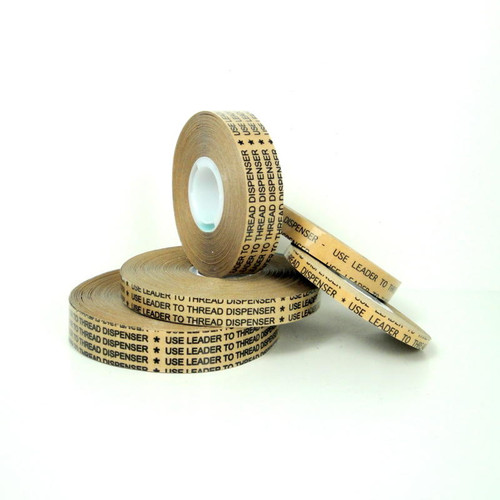

Heavy Duty ATG Tape (56750)

A 4.7 mil (0.120mm) glass stabilized acrylic adhesive transfer tape with brown siliconized paper liner reverse wound on a 1" plastic core. Heavy Duty ATG Tape has a super quick tack, good shear and holding power, excellent for the more difficult bonding applications where more adhesive is needed and is specifically designed to be used in ATG (Adhesive Transfer Gun) dispensers. The ATG system automatically rewinds the tape's liner inside of the dispenser as the tape is applied (tape is dispensed without liner).


Glass stabilization allows for cleaner unwinding. Excellent adhesion to paper, most plastic films, metal foils, etc. Ultra-violet light has little or no effect on adhesive.


Used for mounting nameplates, picture framing, product assembly, design and packaging of prototypes, sealing envelopes, paper web splicing, and general mounting and holding.



Glass Stabilized Modified Acrylic Adhesive

Total Thickness

4.7 mils (0.120 mm)


Brown Siliconized Paper

Peel Adhesion to SST (1 min)

77.7 oz/inch

Peel Adhesion to SST (24 hrs)

105.1 oz/inch

Temperature Resistance

-22°F to 230°F

Available Widths

1/4" (6mm), 1/2" (12mm) or 3/4" (19mm)

Available Lengths

18Yd (16.5M) or 36Yd (33M)


Tape should be stored in a cool, dry environment. Recommended storage conditions are

50% relative humidity and temperatures of 68°F to 86°F.

NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.

Show More Show Less
17.00 LBS
Item Price:
Select Your Options
Item Length:
Select Your Options
Total Items:
Select Your Options
Width: *
Length: *
Pack Size: *
$34.00 Select All Required Options
Free U.S. Shipping Available
Total: $34.00 Select All Required Options

Physical Properties

Shipping and Returns

All non-specialty unused and unopened items received within 30 days may be returned for a full refund or exchange of the product. Tape Jungle will also pay for the return shipping if returned due to company error or product defect.

A 15% restocking fee will apply to converted items, sizes that are listed on the website but cut specifically to order. Custom orders, as defined as application-specific sizes that are NOT listed on the website are non-returnable without prior approval except in the event of company error.

If unsure of the policy, confirm prior to placing your order or request a sample.
