Alanson Products

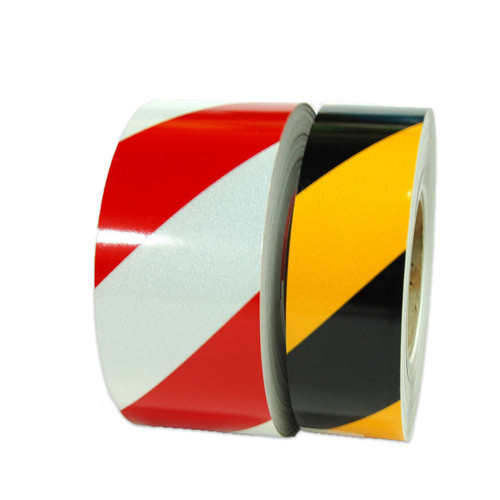

Striped Reflective Tape (77068)
Striped Reflective Tape (77068) series are flexible, glass-beaded polyester striped reflective tapes with acrylic adhesive. The glass beaded retroreflective sheeting is designed to provide bright, vivid colors (in illuminated areas) with light reflective properties in darkness. The aggressive, pressure sensitive acrylic adhesive bonds well to most substrates. Tape is wound Kraft paper release liner on a 3” neutral paper core.
APPLICATIONS:
- Helps signify safety hazards on traffic signs, barricades, fences, gate arms, poles, building etc.
- Used in construction and work zone areas to improve safety and nighttime visibility.
|
PHYSICAL PROPERTIES: |
Striped Reflective Tape (77068) |
|
Service Life |
5-7 Years |
|
Backing / Adhesive |
Polyester with Acrylic Adhesive |
|
Total Thickness |
6.8 mils (0.175mm) |
|
Liner |
6.8mils Polycoated White Kraft |
|
Peel Adhesion |
70 oz/inch |
|
Tensile Strength |
11 lbs/inch |
|
Elongation |
24% |
|
Application Temperature |
≥ 32°F |
|
Temperature Resistance |
-70°F to 160°F |
|
Federal Specifications |
LS-300 (Reflectivity 1, Class 1); FP-85 (Type II) |
|
Colors (213/16” wide diagonal stripes) |
Black/Yellow or Red/White |
NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
Alanson Products
Striped Safety Warning Tape (66X40)
6 mil, soft, polyvinyl chloride (SPVC) striped safety tapes with synthetic rubber based adhesive and wound on a 3” neutral core. These durable, abrasion resistant, highly conformable...
Alanson Products
Laminated Striped Safety Warning Tape (660X0)
Laminated Striped Safety Warning Tape Conformable Soft PVC Vinyl. Synthetic Rubber Adhesive, self-extinguishing. Adhesion: 13.7 oz/in. Tensile strength: 15 lbs/in. Elongation: 210% at break...
Alanson Products
Hazard-Striped Duct Tape (67210)
High quality Polyethylene-coated cloth duct tape with natural rubber with synthetic adhesive. A 63 mesh, high quality polyethylene-coated cloth, coated with a natural rubber based adhesive, and...
Oralite® (Reflexite®)
DOT-C2 Reflective Conspicuity Tape (V92308)
ORALITE® DOT-C2 Reflective Conspicuity Tape Oralite® (Reflexite®) DOT-C2 Conspicuity Sheeting is available with a 5-year or 10-year durability. This weather and solvent resistant product...
Avery Dennison
High Intensity Retro Reflective Tape (HXREF)
High Intensity Retro Reflective Tape - 10 Year, 50 Yards Long (HXREF) This is our Prismatic Retro Reflective tape, it is an economical alternative to our DOT series. This honeycomb prismatic...
